Lynx Aurora 8 24/44 (+4 dBu)

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 32-bit, 44 kHz
Polarity: inverted/inverted




Summary

Frequency response (from 40 Hz to 15 kHz), dB: +0.00, -0.01Excellent
Noise level, dB (A): -115.4Excellent
Dynamic range, dB (A): 115.4Excellent
THD, %: 0.0005Excellent
IMD + Noise, %: 0.0007Excellent
Stereo crosstalk, dB: -115.9Excellent
IMD at 10 kHz, %: 0.0007Excellent

General performance: Excellent




Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB-0.02, +0.00
From 40 Hz to 15 kHz, dB-0.01, +0.00




Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-114.3-114.2
RMS power (A-weighted), dB:-115.4-115.4
Peak level, dB FS:-85.8-85.7
DC offset, %:-0.00-0.00




Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+114.3+114.3
Dynamic range (A-weighted), dB:+115.4+115.4
DC offset, %:0.000.00

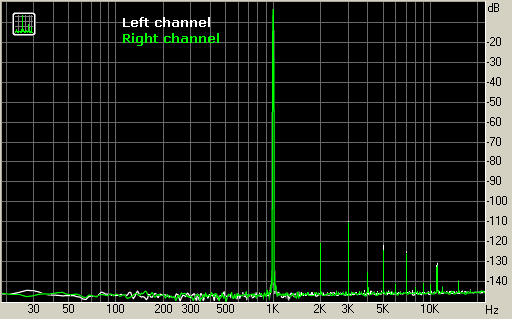

THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.00050.0005
THD + Noise, %:0.00060.0006
THD + Noise (A-weighted), %:0.00080.0007




Intermodulation distortion

Spectrum graph


Parameter Left Right
IMD + Noise, %:0.00080.0007
IMD + Noise (A-weighted), %:0.00060.0006




Stereo crosstalk

Spectrum graph


Parameter L -> R L <- R
Crosstalk at 100 Hz, dB:-119-119
Crosstalk at 1 kHz, dB:-115-115
Crosstalk at 10 kHz, dB:-112-112




IMD (swept tones)

Spectrum graph


Parameter Left Right
IMD + Noise at 5 kHz, %:0.00080.0007
IMD + Noise at 10 kHz, %:0.00070.0006
IMD + Noise at 15 kHz, %:0.00080.0008

This report was generated by RightMark Audio Analyzer 5.6
