Reference
Lynx Aurora 8 24/44 (+4 dBu)
Lynx Aurora 8 24/44 (-10 dBV)

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 32-bit, 44 kHz




Summary

TestReferenceLynx Aurora 8 24/44 (+4 dBu)Lynx Aurora 8 24/44 (-10 dBV)
Frequency response (from 40 Hz to 15 kHz), dB: +0.00, -0.00+0.00, -0.01+0.01, -0.04
Noise level, dB (A): -147.8-115.4-109.5
Dynamic range, dB (A): 133.4115.4109.5
THD, %: 0.00000.00050.0005
IMD + Noise, %: 0.00020.00070.0011
Stereo crosstalk, dB: -148.3-115.9-110.6



Frequency response

Spectrum graph

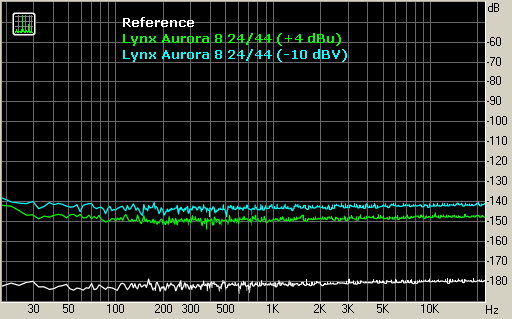

Noise level

Spectrum graph


Dynamic range

Spectrum graph

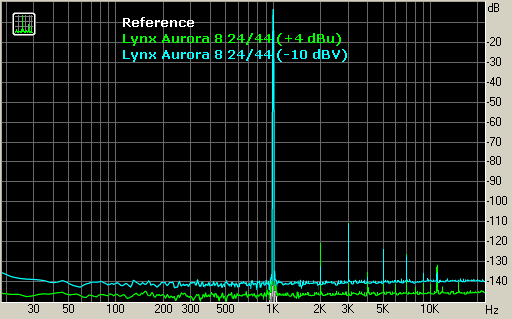

THD + Noise (at -3 dB FS)

Spectrum graph

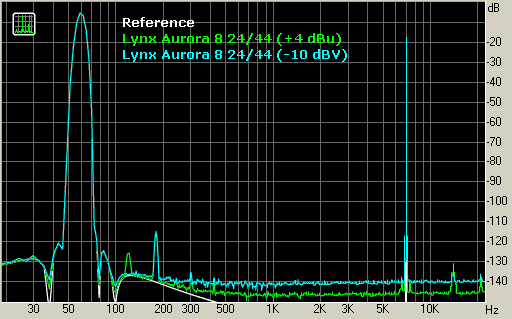

Intermodulation distortion

Spectrum graph

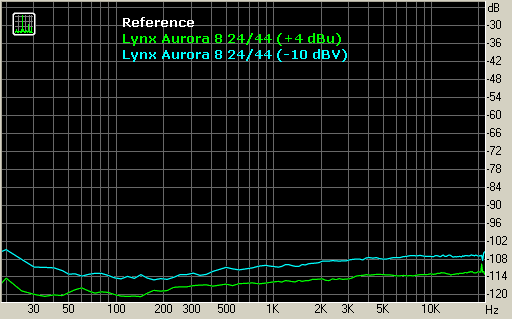

Stereo crosstalk

Spectrum graph



This report was generated by RightMark Audio Analyzer 5.6
