Revo5.1 Front >> E-MU1212m

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 24-bit, 44 kHz
Polarity: correct/correct




Summary

Frequency response (from 40 Hz to 15 kHz), dB: +0.03, -0.08Excellent
Noise level, dB (A): -104.5Excellent
Dynamic range, dB (A): 104.5Excellent
THD, %: 0.0007Excellent
IMD + Noise, %: 0.0024Excellent
Stereo crosstalk, dB: -104.4Excellent
IMD at 10 kHz, %: 0.0024Excellent

General performance: Excellent




Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB-0.25, +0.03
From 40 Hz to 15 kHz, dB-0.08, +0.03




Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-101.4-101.5
RMS power (A-weighted), dB:-104.5-104.5
Peak level, dB FS:-83.4-82.8
DC offset, %:0.000.00




Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+103.2+103.1
Dynamic range (A-weighted), dB:+104.5+104.4
DC offset, %:-0.00-0.00




THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.00070.0008
THD + Noise, %:0.00220.0022
THD + Noise (A-weighted), %:0.00200.0020




Intermodulation distortion

Spectrum graph


Parameter Left Right
IMD + Noise, %:0.00240.0024
IMD + Noise (A-weighted), %:0.00200.0020




Stereo crosstalk

Spectrum graph


Parameter L -> R L <- R
Crosstalk at 100 Hz, dB:-101-99
Crosstalk at 1 kHz, dB:-103-103
Crosstalk at 10 kHz, dB:-91-90

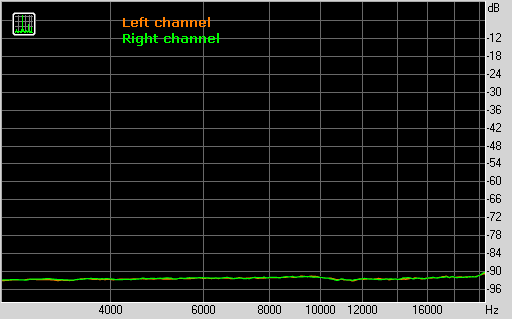

IMD (swept tones)

Spectrum graph


Parameter Left Right
IMD + Noise at 5 kHz, %:0.00240.0024
IMD + Noise at 10 kHz, %:0.00250.0025
IMD + Noise at 15 kHz, %:0.00240.0024

This report was generated by RightMark Audio Analyzer 5.6
