RightMark Audio Analyzer test report

Testing device ASUS Xonar DX Audio
Sampling mode 24-bit, 48 kHz
Interface
Testing chain
RMAA Version 6.0.6 PRO


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -0.3 dB / -0.3 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.00, -0.01
Excellent
Noise level, dB (A)
-110.7
Excellent
Dynamic range, dB (A)
110.7
Excellent
THD, %
0.0007
Excellent
THD + Noise, dB (A)
-98.7
Excellent
IMD + Noise, %
0.0012
Excellent
Stereo crosstalk, dB
-109.1
Excellent
IMD at 10 kHz, %
0.0013
Excellent
General performance

Excellent



Frequency response

Spectrum graph

From 20 Hz to 20 kHz, dB
-0.06, +0.00
From 40 Hz to 15 kHz, dB
-0.01, +0.00



Noise level

Spectrum graph


Left
Right
RMS power, dB
-109.1
-109.1
RMS power (A-weighted), dB
-110.7
-110.7
Peak level, dB FS
-85.5
-85.1
DC offset, %
-0.0
-0.0

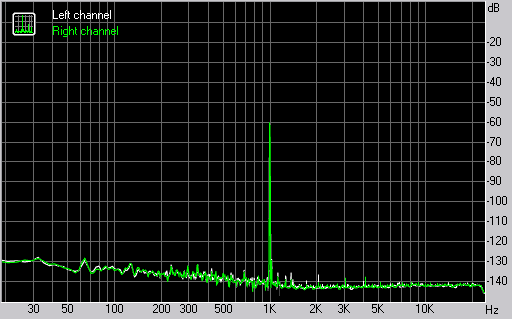

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+109.2
+109.2
Dynamic range (A-weighted), dB
+110.7
+110.8
DC offset, %
-0.00
-0.00

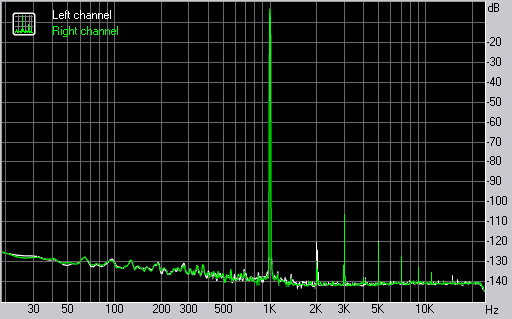

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
+0.0007
+0.0007
THD + Noise, %
+0.0011
+0.0011
THD + Noise (A-weighted), %
+0.0012
+0.0012



Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
+0.0012
+0.0011
IMD + Noise (A-weighted), %
+0.0009
+0.0009

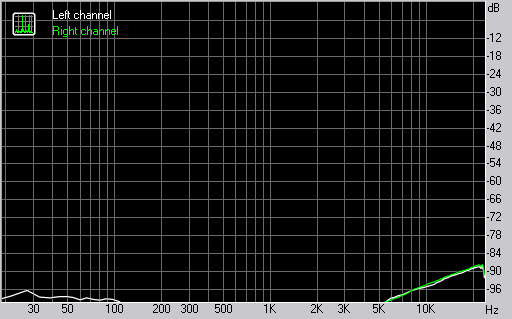

Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-99
-101
Crosstalk at 1000 Hz, dB
-109
-108
Crosstalk at 10000 Hz, dB
-94
-93



IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.0012
0.0016
IMD + Noise at 10000 Hz,
0.0011
0.0013
IMD + Noise at 15000 Hz,
0.0011
0.0014
