RightMark Audio Analyzer test report

Testing device ASUS Xonar DX ASIO
Sampling mode 24-bit, 44 kHz
Interface
Testing chain
RMAA Version 6.0.6 PRO


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -0.3 dB / -0.3 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.01, -0.06
Excellent
Noise level, dB (A)
-108.3
Excellent
Dynamic range, dB (A)
107.8
Excellent
THD, %
0.0007
Excellent
THD + Noise, dB (A)
-98.2
Excellent
IMD + Noise, %
0.0013
Excellent
Stereo crosstalk, dB
-107.5
Excellent
IMD at 10 kHz, %
0.0015
Excellent
General performance

Excellent



Frequency response

Spectrum graph

From 20 Hz to 20 kHz, dB
-0.15, +0.01
From 40 Hz to 15 kHz, dB
-0.06, +0.01

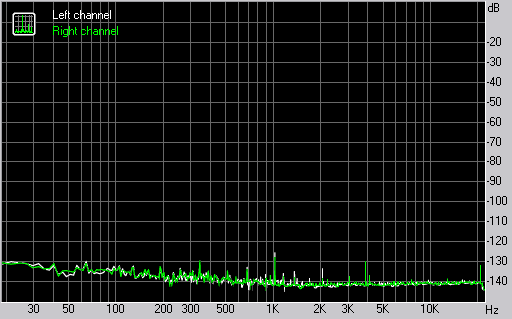

Noise level

Spectrum graph


Left
Right
RMS power, dB
-107.0
-107.1
RMS power (A-weighted), dB
-108.3
-108.3
Peak level, dB FS
-85.2
-85.9
DC offset, %
+0.0
+0.0



Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+106.3
+106.4
Dynamic range (A-weighted), dB
+107.8
+107.9
DC offset, %
+0.00
+0.00

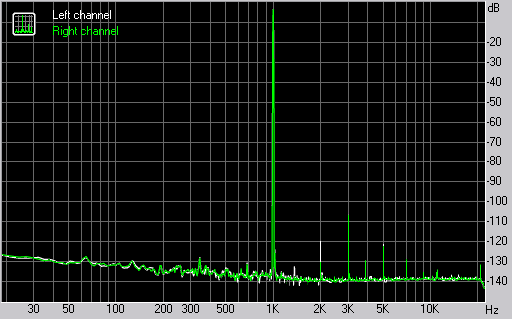

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
+0.0007
+0.0007
THD + Noise, %
+0.0012
+0.0012
THD + Noise (A-weighted), %
+0.0013
+0.0012

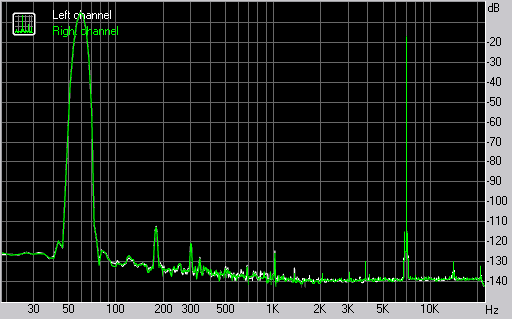

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
+0.0013
+0.0013
IMD + Noise (A-weighted), %
+0.0011
+0.0011



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-105
-101
Crosstalk at 1000 Hz, dB
-107
-106
Crosstalk at 10000 Hz, dB
-94
-93



IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.0014
0.0018
IMD + Noise at 10000 Hz,
0.0013
0.0015
IMD + Noise at 15000 Hz,
0.0013
0.0015
